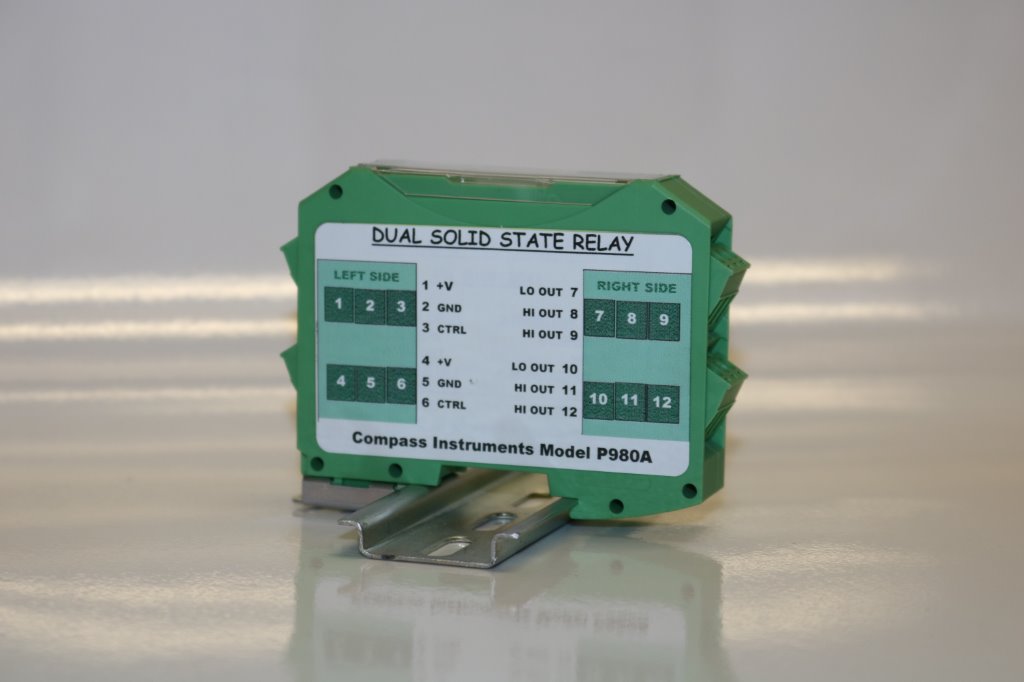

DUAL SOLID STATE RELAY P980A Series
$138.00
Dual unit available with normally closed or normally open contacts. Each section can switch DC current up to 10 amps with voltage from 5-60VDC. Isolated outputs can sink or source current.
Full Description
OUTPUT STAGE CONTAINS AN ISOLATED POWER MOSFET WHICH CAN CONNECT ON THE HIGH SIDE (SOURCING CURRENT) OR ON THE LOW SIDE (SINKING CURRENT) AS SHOWN BELOW.
SPECIFICATIONS
- LOGIC POWER: 9 TO 30VDC
- LOAD VOLTAGE: 5 TO 60VDC
- LOAD CURRENT: UP TO 10A EACH
- INPUT SWITCH THRESHOLD: 4.5 VDC
