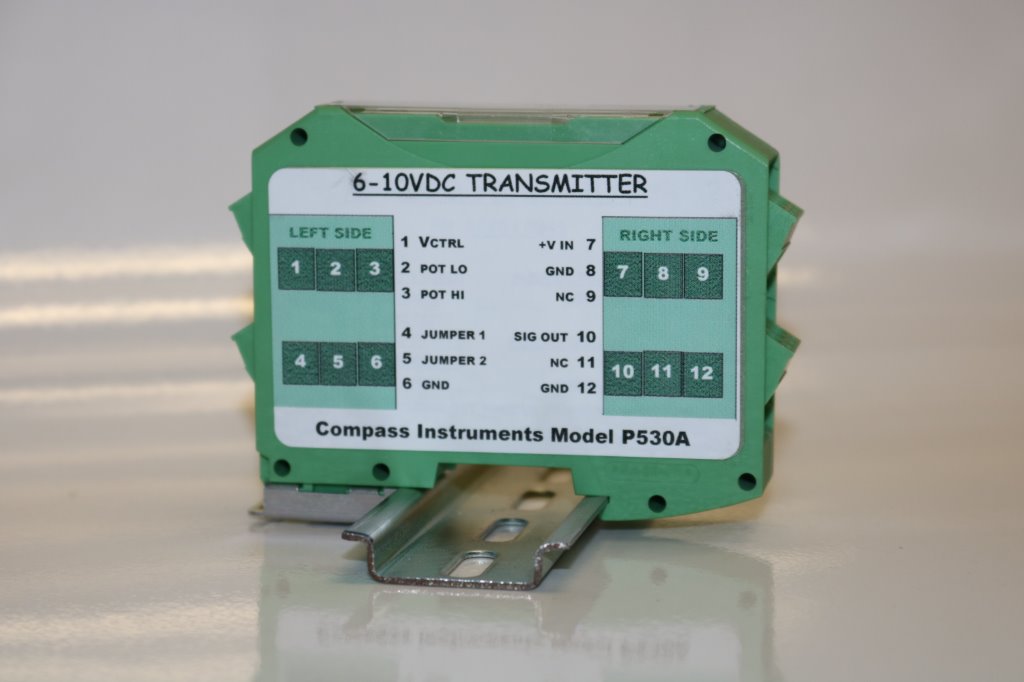

6-10VDC TRANSMITTER P530A

Name: 6-10VDC TRANSMITTER P530A
SKU: P530A
Availability: InStock

$230.00

This unit is designed to control certain danfoss hydraulic valves that require six to nine or six to ten volts control voltage.

View Data Sheet Specs Here

SKU: P530A Categories: Din Rail Mount, Signal Transmitter

PWM TO 4-20 MA CONVERTER P420 Series 12/24 VOLT DC/DC CONVERTER 122410-2

Full Description

The output is controlled by a control voltage of 0 to 5 VDC applied to pin one, or by a 10K pot connected to terminals 1, 2, and 3. The output voltage is linearly proportional to the input voltage (or potentiometer position).
