Full Description

OUTPUT CURRENT UP TO 10 AMPS

This unit has been on the market for over 5 years, we have literally sold thousands—and have not had a single unit returned because of an electrical failure.

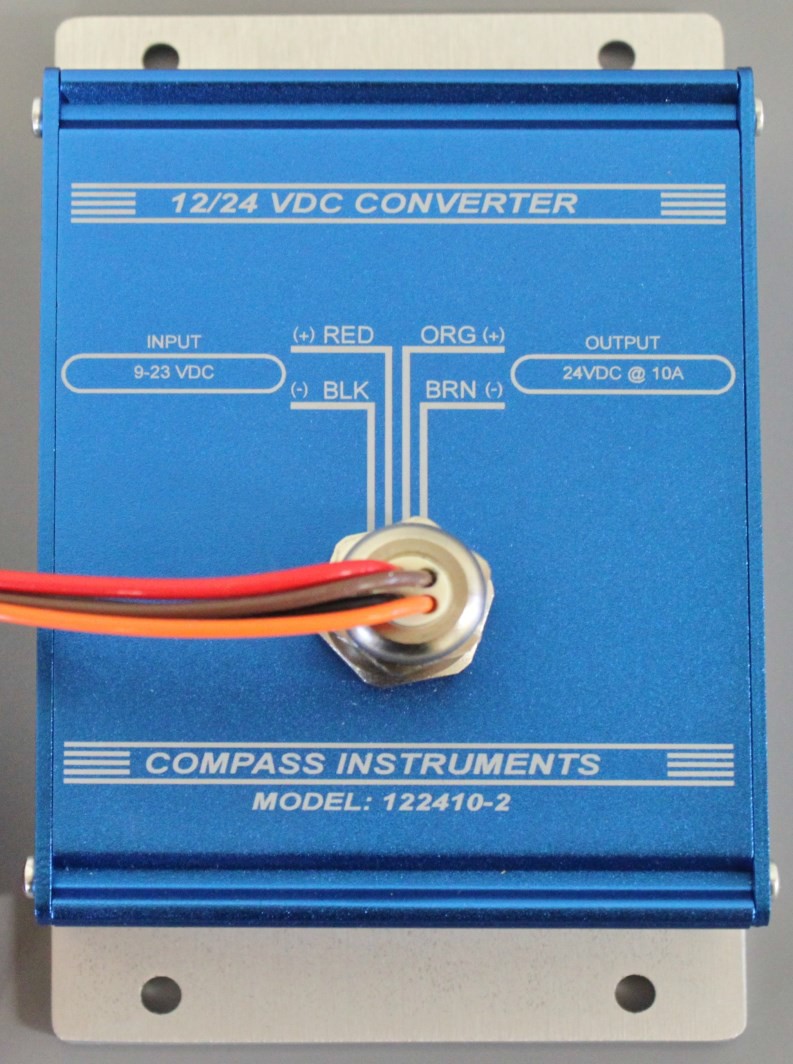

It is mounted inside a NEMA 4X aluminum enclosure and fully potted so that it may be mounted anywhere in any orientation and does not require an additional enclosure or protection from the elements.

Color coded flying leads are over 2 meters long for ease of wiring into control circuitry.

Input overvoltage protection and output current limit circuitry protect the unit from damage due to external fault conditions.  Mounting hole dimensions are 2.5” X 5.0”.  Wide temperature range of  –400C to +650C. Wide voltage input range of 9.0 to 23.0 VDC provides an output Voltage of 24VDC +/- 0.5V. Load regulation is +/- 0.15V Maximum. Line regulation is +/- 0.15V Maximum. The output is not electrically isolated from the input.

This unit was designed to provide 24VDC to power electronic instrumentation (such as flow meters, level probes, pressure and temperature transmitters, and even control systems) from a 12V battery/alternator systems on off road oil well service equipment. If you need to convert your 12 volt system to 24 volts this will provide up to 10 amps of current. Input voltage may vary from 9 to 23 volts, making it ideal for 12V solar systems as well.

These units are super reliable because:

The newest generation of stable, efficient, and long lasting components are used to create an efficient design that will output up to 10 amps of current without stressing the internal components. This includes the following:

• New technology long life capacitors
• Printed circuit board material that is thermally conductive
• Multiphase electronic design for higher efficiency
• Gel type potting material for reduced stress over wide temperature variations

These features combine to provide a very efficient unit that produces little heat, and a mechanical design using special thermally conductive materials that dissipate heat. Plus, the packaging design provides a NEMA 4X weatherproof unit that can be mounted most anywhere and in any position,
